Bournout Furnace
Leading Manufacturers, Exporters and Wholesaler of Electric Burnout Furnace, UCM-BTF-01 Bournout Furnace, UCM-BTF-02 Burnout Furnace, UCM-BTF-03 Burnout Furnace and UCM-BTF-04 Burnout Furnace from Rajkot.
| Business Type | Manufacturer, Exporter, Supplier |
| Power Source | Electric |
| Exterior Dimension (LxBxH) | 23 x 24 x 18 Inch |

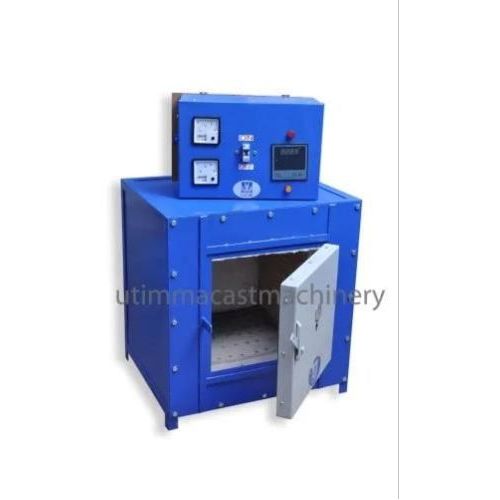

| Model Name/Number | UCM-BTF-03 |
| Rust Proof | Yes |
| Material | Stainless Steel |
| Power | 220/440 V AC 6 kW |
| Chamber Size | 12 x 12 x 12 Inch |
| Net Weight | 145 Kg |
| Business Type | Manufacturer, Exporter, Supplier |
| Melting Material | Stainless Steel |
| Power Source | Electric |
| Exterior Dimension (LxBxH) | 15 x 16 x 17 Inch |
| Model Name/Number | UCM-BTF-01 |
| Chamber Size | 6 x 6x 6 inch |
| Power Supply | 220/440 V AC 2 kW |
| Net Weight | 45 Kg |
| Business Type | Manufacturer, Exporter, Supplier |
| Power Source | Electric |
| Rated Power (KW) | 4 kW |
| Voltage | 220/440 V AC |
| Exterior Dimension (LxBxH) | 19 x 21 x 14 inch |

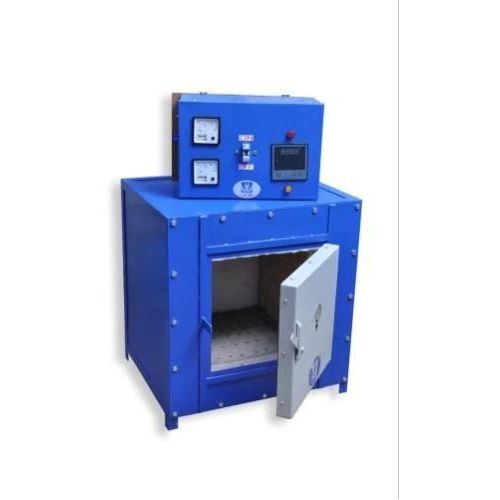

| Model Name/Number | UCM-BTF-02 |
| Chamber Size | 10 x 10 x 10 inch |
| Net Weight | 85 Kg |
| Business Type | Manufacturer, Exporter, Supplier |
| Melting Material | Copper |
| Material Loading Capacity (T) | 5KG |
| Power Source | Electric |
| Type Of Furnace | Fix |
| Rated Power (KW) | 6 |
| Input Voltage (V) | 220 |
| Melting Time | 4 Hour |
| Max Operating Temperature | 800 C |
| Power Consumption | Single Phase |
| Interior Dimension (LxBxH) | 12X12X12 |
| Exterior Dimension (LxBxH) | 23X24X18 |
| Temperature Accuracy | 10 C |
| Thermocouple Type | J TYPE |
| Automation Grade | Automatic |
| Furnace Weight (kg) | 145 Kg |
| Electrode Material | A1 Canthole |
| Model Name/Number | UCM-BTF-03 |
| Business Type | Manufacturer, Exporter, Supplier |
| Power Source | Electric |
| Rated Power (KW) | 8 kW |
| Voltage | 220/440 V AC |
| Exterior Dimension (LxBxH) | 30 x 23 x 29 Inch |
| Model Name/Number | UCM-BTF-04 |
| Chamber Size | 18 x 18 x 18 Inch |
| Net Weight | 200 Kg |
